Product Description

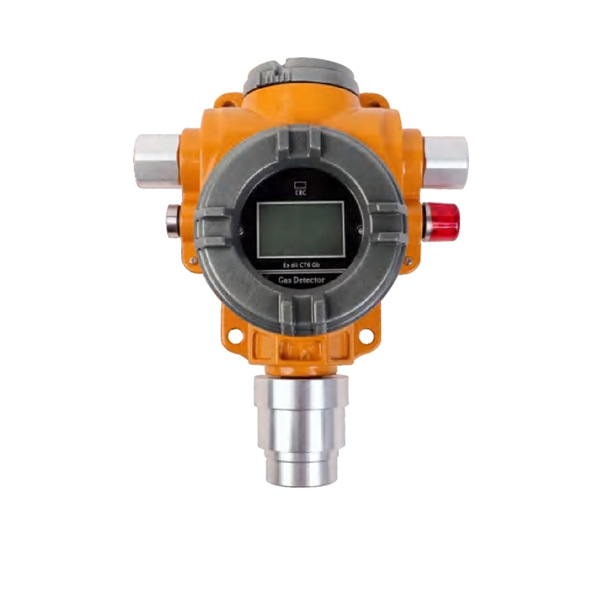

Sound and light integrated alarm
Accurate measurement The sensor adopts imported gas sensitive elements, with high accuracy and small zero drift
Explosion-proof design Can be used in hazardous areas of zone 1, 2 under factory conditions
Wireless remote control technology
Natural diffusion detection
Chinese LCD display
Two groups of switch signals
Double cavity structure, independent plug-in wiring area, convenient, safe and simple
Modular sensor
Technical data
•Detection principle：Catalytic combustion/ electrochemical/ infrared
•Gas detected：Combustible gas, toxic gas
•Sampling mode：Natural diffusion
•Detection range：(0~100%)LEL；0-****PPM
•Resolution ratio：1%LEL；1PPM/0.1PPM
•Measurement error：Full scale±3%LEL
•Status indication：LCD
•Debugging mode：Controller
•Response time：＜20s
•Recovery time：＜30s
•Environment temperature：(−20~50)℃(indoor) (−40~70)℃(outdoor)
•Power Supply：DC24V/36V±10%
•Relative humidity：＜95%
•Explosion proof grade：Exd IIC T6 Gb
•Ingress protection：IP66
•Weight：≤2000g
•Measurement number：No. 2016C243-41
•Size：(22*19*9)cm
Gas classification
CH4 Propane C2H6O CH3OH H2 C2H4 LPG LNG CH2 O3 H2S HCN CLO2 SO2 ETO NH3 HCL HCHO CO CL2 N2H4 O2 CO2
