Multi detection alarm

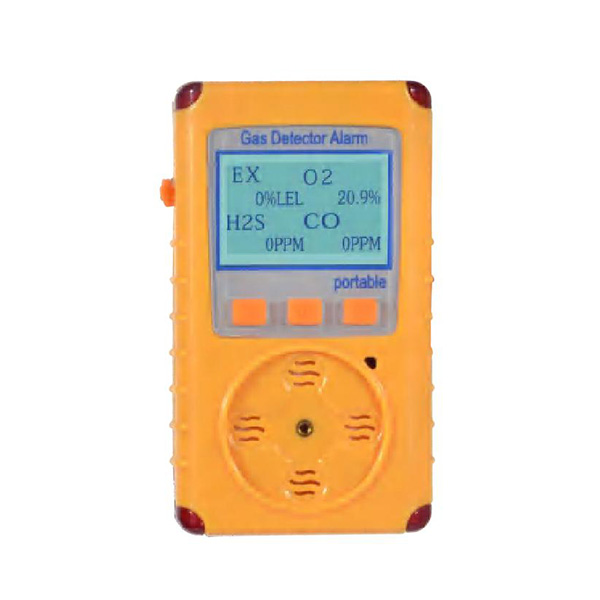

KP826/836 portable gas detector with dot matrix display technology can detect five kind of gases simultaneously such as combustible gas. O2, CO and H2S, NH3 or any other freely combination customized according to customer needs; Testing results are displayed on the screen, and users can begin manual operation at any time. The standard USB interface can be used for charging, data transfer and its inquiry alarm records.

Product Features

• Simple user interface, large screen display

• Charging power display, low potential warning indicator

• Simple storage of calibration results and calibration of its functional departments

• Data can be connected to computer for viewing data

• Solid product structure, flame retardant ABS plastic material

• Simple operation, ergonomic design

• A variety of combinations (combustible gas +3 gas, oxygen +3 gas, 4 gas, combustible gas + four gas)

• Sound and light, visual and vibration alarm

• Intelligent sensor calibration

• Sturdy structure, easy maintenance

Spectral range of response:•Detection type: natural diffusion or (external pump suction)

Detection principle: electrochemical or catalytic, infrared

Detection accuracy: 3% FS

Interface Definition: U3 port (USB)

Storage capacity: MAX3000

Dimensions: (121 * 68 * 32) mm

Suitable temperature: -20 ℃-50 ℃ (-4 ℃F-122 ℃F)

Humidity: 0-95% R.H non-condensing

Sound: LED flashing> 90 dB

Display: Backlight display

Battery: 7000mA lithium battery rechargeable battery

Continuous use:> 14 hours (> 8 hours)

Charging time: <6 hours

Shell: Flame retardant plastic shell

Drop test: 2meters

Degree of protection: IP65

Reaction Time (T90): LEL = 10 seconds O2 = 10 seconds CO = 10 seconds H2S = 10 seconds

Certification mark: Ex ib IIB T3 Gb

Total weight: about 240g (with charger)
