Product Description
Designed for Explosive atmosphere Zone 1, Zone 2
Designed for Groups IIA,IIB,IIC, Temperature classes T1~T4
Designed for sites with explosive atmosphere, such as petroleum exploitation, refinery, storage, chemistry, medicine, military facilities, etc.

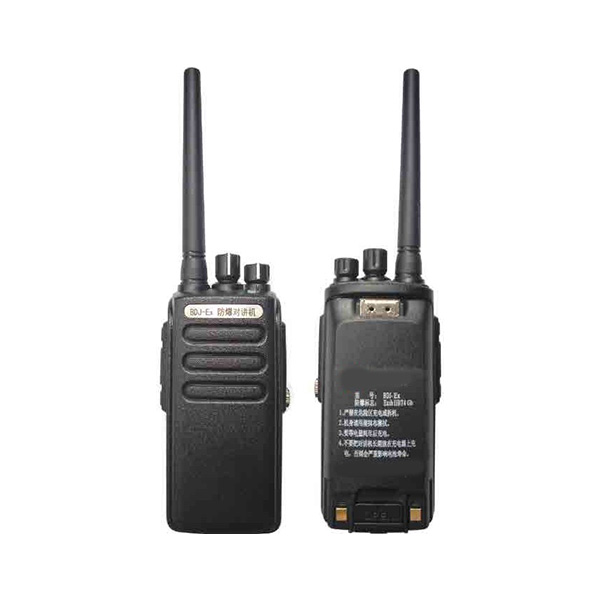

It is a high-performance and multi-functional Explosion-Proof digital two-way radio. It supports DMR conventional and Trunking, analog conventional and other popular communication systems. Digital conventional supports rich personalized functions, including full duplex call, single frequency repeater, ad hoc networking, and smart IP interconnection system. This device meets the criterion of the national military standard, and passed the gas explosion-proof: ex IB IIB T4 GB and the dust explosion-proof: ex IBD 21 T200. The product adopts military standard design and IP68 protection.
Ex-marking | Ex ib IIB T3 Gb/Ex ibD 21 T200℃ |
Protection grade | IP67 |
Input voltage | 7.4VDC |
Frequency | 400-480MHz |
Channel quantity | 16 |
Channel distance | 25/12.5KHz |
Sensitivity | 0.35μV |
power | ≤ 3W |
Charging time | 4H |
Battery working time | 14H（90% ，5% ，5% ） |
dimension | 59*40*240mm |
Air pressure | 80 ～ 106KPa |
Ambient temperature | -40℃ ~+85℃ |
Relative humidity | ≤ 95%RH(+25℃ ) |
