Product Description

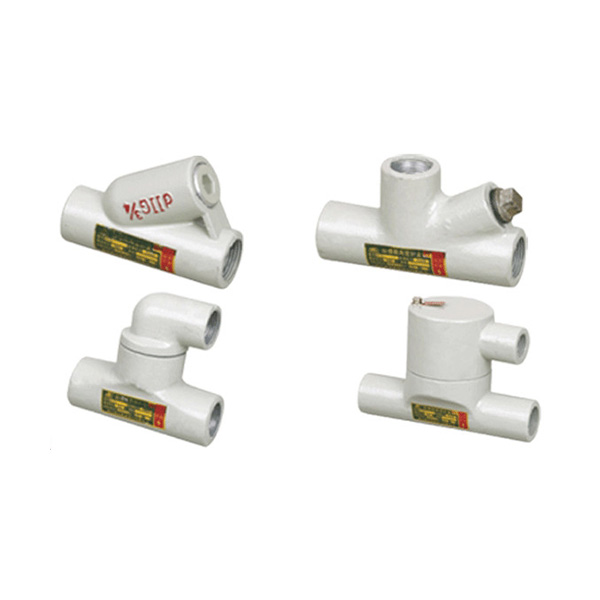

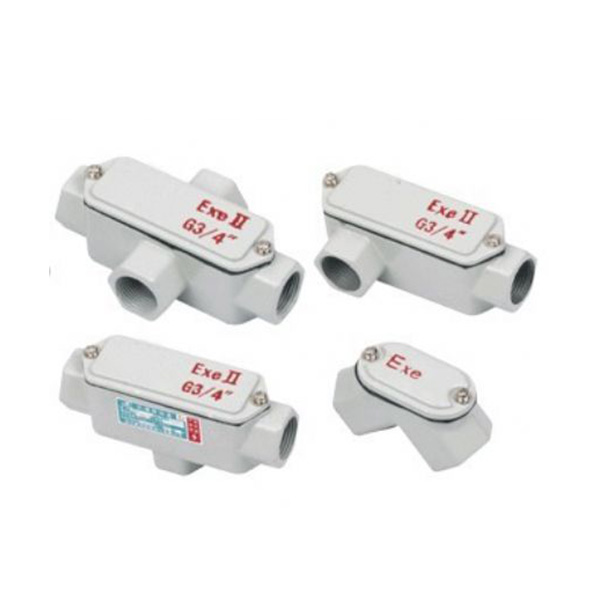

The shell is of diecasted Al-alloy with plastic –sprayed surface.
adopt the connection of pipe thread.
well sealing , explosion-proof.
various structures, ease to install.
Model and thread specification:
Application | Act as pull outlets for conductor being installed.Change direction of conduit Installed in-conduit systems within hazardous areas |
Features | Smooth integral hub bushings to protect conduct insulation when pulling.Most compact design of all hazardous area outlet bodies |
Material | Cast aluminum |
Finish | High voltage power coated |
Ex marks | Exe II |
Ingress protection | IP55 |
Corrosion resistance | WF1 |
General Selection Table
Type | Pipe thread (G") | Cable diameter (mm) |
BHC-G1/2" | 1/2 | Ø8-10 |
BHC-G3/4" | 3/4 | Ø10-14 |
BHC-G1 " | 1 | Ø12-17 |
BHC-G1 1/4" | 1 1/4 | Ø15-32 |
BHC-G1 1/2" | 1 1/2 | Ø17-26 |
BHC-G2" | 2 | Ø25-35 |
BHC-G2 1/2" | 2 1/2 | Ø29-38 |
BHC-G3" | 3 | Ø33-51 |
