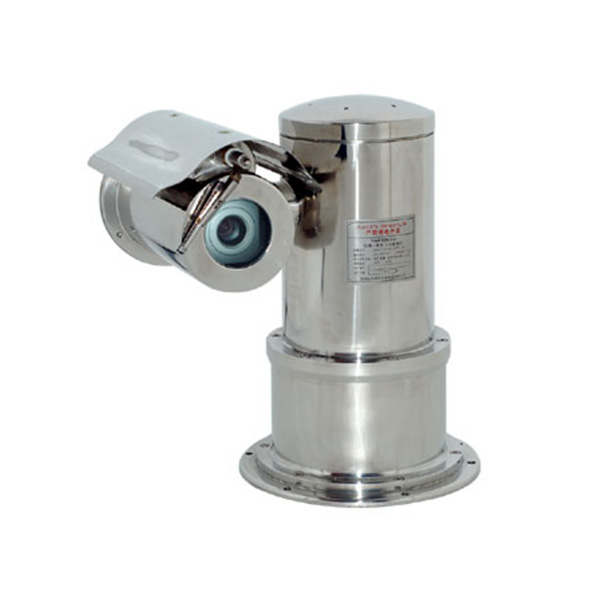

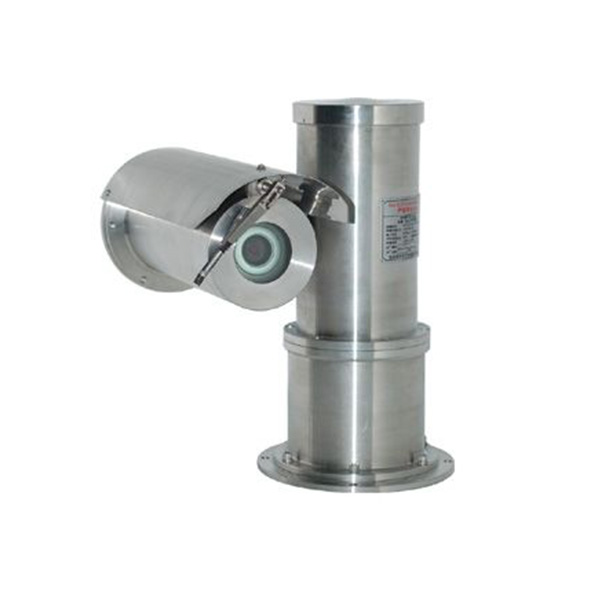

Explosion proof PTZ camera

This Explosion proof PTZ Camera regards as a small explosion-proof video supervising system, which consists of explosion-proof camera, pan/tilt and decoder. The explosion-proof function totally meets the standard of the mechanical and electronic demand of China explosion proof GB3836-2000. It can be applicable for the dangerous circumstances of volatile gas and flammable powder, such as hydrogen（H2）and hydrocarbon gas in the plants（expect C2H2）. The exterior is so concise and simple that it is convenient for on-the-spot installation. Meanwhile it could attach the integral integration video camera or mini-zoom lens camera and infrared lamp to it.

Model No.:YTW-2

Explosion proof Integrated Camera system specification:

Explosion-proof Marking :ExdⅡCT6   Ex DIP A21 TA，T6

Enclosure Protection: IP68

Ambient Temperature : –40℃～+60℃

Input Voltage: DC12V    Current: ≤1 A   Power consumption:≤ 90W

Material：SS304

Speed :   Horizontal  0º～40º/S   Vertical    0º～40º/S

Rotation Angle ： Horizontal  360º Continuously Turning

                             Vertical   ±90º （May shift ）

Auto-heated: while it is <1℃（Optional）

Communication Mode: RS-485

Communication Agreement: Pelco-D Pelco-P According to Client's Demands

Communication Speed：2400～19200bps

Preset ：128，Accuracy ≤0.2º

• 1/4" Super HAD  CCD

• 25x(f=3.6 ~ 91mm) Optical Zoom Lens (16x D-Zoom)

• Min. Object Distance : 1000mm•

• High Resolution : 600 TV Lines(colour)/700 TV Lines(black/white)

• Min. illumination0.004 Lux (F1.6, 15 IRE, Color, Sens-Up 512x)

• Day/Night Function

• Full Auto focus function

• DIS, XDR, Adaptive DNR(2D/3D), PIP

• Privacy Mask zone (12 Area)

• Multi-Protocol support (8ea), Multi-OSD support• Remote Control : RS485, Data on Coaxial Cable
