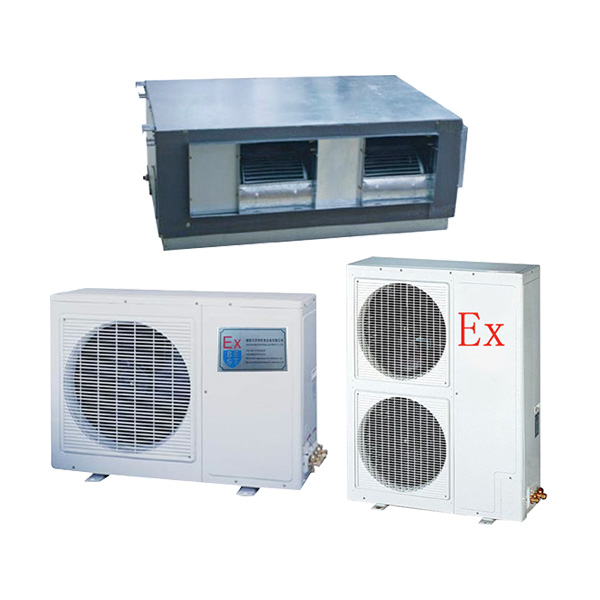

Explosion Proof Ducted Air Conditioner

• The explosion proof split ducted air conditioner is with Full range models with cooling capacity from 2.6kW to 17.5kW, from 16kW to 65kW, available in R410A, R407C, and R22; two power suppliers 230V 50Hz 1-phase and 380/400V 50Hz 3-phase.

• The explosion proof duct Air Conditioning system provides air conditioned comfort to new and existing homes. This means you can enjoy climate controlled comfort all year round, all round the house.

Ducting reverse cycle air conditioning is designed to air condition every room of a house or office. The fan coil is installed in the ceiling space and connected via small pipes to the outdoor unit. The fan coil pumps the conditioned, dehumidified air through flexible ducting to ceiling diffuse located in each room. Available in a range of capacities with three speed fans to deliver the required volume of air.

• The ducting heating and cooling systems are zoned to enable you to select the area of the home or office that is to be air conditioned.

        A typical layout may be: Zone 1: Bedrooms; Zone 2: Kitchen and Family Room; Zone 3: Dining and Living Room

        Features: Concealed Installation;Perfect comfort throughout every room;Reverse cycle heating & cooling;A selection           of  outlets to choose from;Wall Controller

• This type of explosion proof duct air conditioner is up to the standards of the products quality surveillance of national explosion-proof electrification, and has obtained the explosion proof certificate . Such explosion proof split wall mount air conditioners can be used in Used in the hazard area:

       Zone 1,Zone 2 ,Groups IIA,IIB,IIC (IEC hazard area classification),

Suitable used in the temperature range:T1,T2,T3,T4

Explosion-proof mark : Exdmbib Ⅱ BT4, Exdmbib Ⅱ CT4  .Explosion proof protection can be designed according to the ambient environment.

This explosion proof split duct air conditioner  are produced based on the explosion proof equipment standards as below:

• GB3836.1-2010《Electrical apparatus for explosive gas atmospheres Part one: General requirements and test methods》, which is equivalent to IEC60079-0:2007

• GB3836.2-2010《Electrical apparatus for explosive gas atmospheres Part two: Flameproof enclosure “d”》,which is equivalent to IEC 60079-1:2007

• GB3836.4-2010《Electrical apparatus for explosive gas atmospheres Part four: Intrinsic safety “i”》,which is equivalent to IEC 60079-11:2006)

• GB3836.9-2010 《Electrical apparatus for explosive gas atmospheres Part nine: Encapsulation “m”》,which is equivalent to IEC 60079-18:2004 .
