Product Description

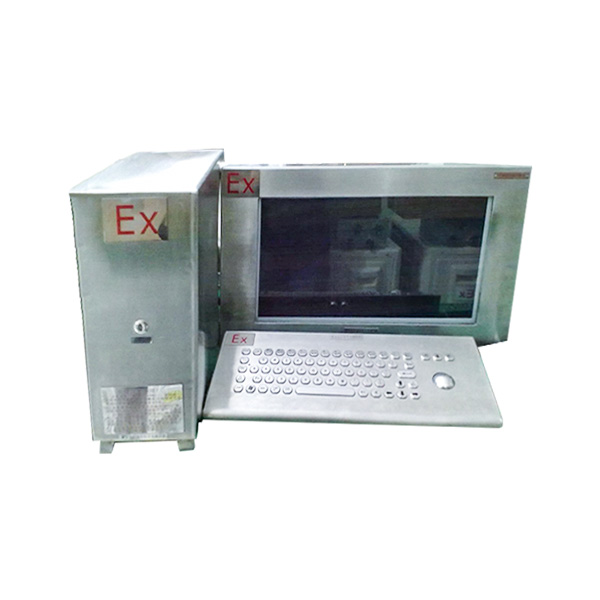

This explosion proof desktop is used in the hazard area Zone 1,Zone 2 (IEC hazard area classification),Class 1,Division 2, Group B,C,D area.(NEC hazard area classification).Explosion-proof mark : ExdibⅡBT4 Gb
Small size,it is light-weight,corrosion proof enclosure with SS304 material, easily installed.
Fast running speed, the shortest start time is 6 seconds.
Tiptop hardware configuration make the PC wok with high performance.
Support with the interfaces:USB,WLAN,parallel port, series port.
with explosion proof/intrinsically safe keyboard
Standards
The explosion Proof computers are produced based on the China’s Ex standards as below:
GB3836.1-2010《Electrical apparatus for explosive gas atmospheres Part one: General requirements and test methods》, which is equivalent to IEC60079-0:2007
GB3836.2-2010《Electrical apparatus for explosive gas atmospheres Part two: Flameproof enclosure “d”》,which is equivalent to IEC 60079-1:2007
GB3836.4-2010《Electrical apparatus for explosive gas atmospheres Part four: Intrinsic safety “i”》,which is equivalent to IEC 60079-11:2006
Technical specifications
Explosion proof desktop | |
Model No. | BTJ-2 |
Ex-Marking | Exd ibIIB T4 Gb |
Protection grade | IP54 |
Input voltage | AC220V (AC100-265V 50/60Hz) |
Working current | ≤3A |
Main board | H81 |
CPU | Intel I3-4170 Dual Core 3.4G |
Memory | DDR3 1600 4G(expandable to be 32GBMax.) |
Hard disk | SSD 500G, 1T(optional) |
Display monitor | 17" with display pixels 1280*1024 |
Ethernet | 100/1000M |
Ports | USB2.0,WLAN,RS232,DB25(optional) |
Accessory | keyboard with integrated mouse |
Operating system | WIN XP /WIN7 /WIN8( english version)(Optional) |
Case material | Stainless steel 304 |
Net weight | 36kg(host) 18kg(Monitor) |
Installation | Standing alone/Hanging |
Cable inlets | G1/2*6 |
Dimension(W*H*D) | 502*304*160mm(Host) 490*465*230mm(Monitor) |
Air pressure | 80～106KPa |
Ambient temp. | -25℃~+60℃ |
Relative humidity | ≤95%RH(+25℃) |
