Explosion Proof Axial Fan

Wind cylinder :Superior quality steel plate
could install with shelf as per your need
Main shaft revolution:1450 r/min
Power:0.18-1.1kw
Air volume:2280-10320m3/h

Quantity:
Availability:





Inquire Add to Basket

Product Description

Designed for Explosive atmosphere Zone 1, Zone 2
Designed for Groups IIA,IIB,IIC, Temperature classes T1~T4
Designed for sites with explosive atmosphere, such as petroleum exploitation, refinery, storage, chemistry, medicine, military facilities, etc.

Features

1, Explosion proof axial fan is composed of explosion proof motor, fan blade ,wind cylinder,etc.

2, Wind cylinder is welded of superior quality steel plate, die casted fan of Aluminium alloy

with high pressure electrostatic plastic-sprayed surface.

3,Mounting mode has four ways can be chosen: Bracket type, pipe type, post type, fixed type.

4, Steel pipe wiring and cable wiring.

Technical parameters

Explosion protection: Exd IIBT4

Rated voltage: AC 220/380V

Main shaft revolution: 1450 r/min

Corrosion proof grade: WF1

Ingress thread specification: G3/4"

Cable's outer diameter: 9mm~14mm

Compliance with: GB 3836.1,GB 3836.2,IEC60079-0,IEC60079-1

Model	Diameter (mm)	Power (kw)	Main Axle Rotation (rpm)	Angle	Flow (m³/h)	Electric Cable Out Diameter/Thread mm G’’	Rated Voltage (v)
CBF-300	300	0.1S	1420	20°	2280	φ10- φ4 3/4G	380 220
CBF-400	400	0.37	1420		2SS0
CBF-500	500	0.55	1420		5700
CBF-600	600	0.5	1420		S700
CBF-700	700	1.1	1420		10200
CBF-150	750	1.1	1420		10320

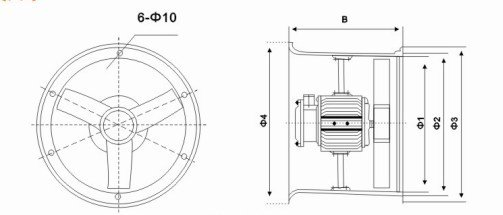

Dimension	B	φ1	φ2	φ3	φ4
CBF-300	315	310	330	350	380
CBF-400	315	410	400	450	485
CBF-500	315	510	530	550	585
CBF-600	315	610	630	650	685
CBF-700	350	710	735	765	790
CBF-750	350	760	785	815	S40
